Hardware Specifications

List of software versions

HW V3.0

• V3.0.10P3N2 (OpenFiber)
• V3.0.10N06, internal version is V3.0.10P2N6 (TIM Italy)

List of partitions

HW V3.0

This ONT supports dual boot, as visible from the presence of kernel0 and kernel1, which contain the rootfs (JFFS2 read-only). The boot images can be swapped if they are the same or use the same U-Boot version. If you have a different U-Boot that was paired with the active image, do not attempt this, as it will brick the ONT.

upgradetest switchver X

Where X can be 0/1, based on the image you want to boot from.

You can also clone the currently running image into the other slot using this command:

syn_version

You can check currenlty running image using this command:

# cat /proc/csp/versionstates

baseaddress    : 0x1b00000
current        : 0
version1states : 0x83
version2states : 0x83
____________________________________________________
Index   Running Latest  CRC     Integrality     Type
----------------------------------------------------
0        Y       Y       N       Y              Upg
1        N       Y       N       Y              Upg
----------------------------------------------------

And check if the backup image has a valid CRC:

# upgradetest bakver
backup version crc is ok
success!

Use

Enable Telnet

./zteOnu -i 192.168.1.1 -u admin -p admin

If Telnet is not opening, you are probably running a newer firmware, in that case change mac-address of the NIC connected to the ONT to 00:07:29:55:35:57 and use the flag --new:

./zteOnu -i 192.168.1.1 -u admin -p admin --new

You should get this output and credentials to login over telnet:

ZteONU 0.0.7, built at 09/10/2024
source: https://github.com/stich86/zteOnu
-----------------------------------
step [0] reset factory: ok
step [1] request factory mode: ok
step [2] send sq: ok
step [3] check login auth with user: ok
step [4] enter factory mode: ok
-----------------------------------
Success authenticated with user: admin and password: admin
Telnet Credentials (!! Temporary !!)
User: 9qNBo58H
Pass: OUBToR8J

Enable console redirection

To see omcidebug messages on telnet, execute this command (just the first time of each connection):

redir printf

GPON ONU status

Getting the operational status of the ONU

To check the connection status, use the following command:

gpontest -gstate

[gpontest] gpon state is [O5] for O5 state

Getting OLT vendor information

sendcmd 132 omcidebug showmedata 131

This command will print the following output:

##################################
MIB INFO:
         ME CLASS: 131
         DB NAME: olt_g, DBHandle: 32
##################################

<-----MeID[ 0x0000,0 ], Addr[ 0x19a2b1]----->
         Vendorid:48 57 54 43
      EquipmentID:00 00 00 00 00 00 00 00 00 00
                    00 00 00 00 00 00 00 00 00 00
          Version:31 30 00 00 00 00 00 00 00 00
                    00 00 00 00
        TimeofDay:00 00 00 00 00 00 00 00 00 00
                    00 00 00 00
---------------------------------------------------------------------

Querying a particular OMCI ME

sendcmd 132 omcidebug showmedata ID_MIB (eg. 7 for Firmware version)

This command will print the following output:

##################################
MIB INFO:
         ME CLASS: 7
         DB NAME: soft_image, DBHandle: 14
##################################

<-----MeID[ 0x0000,0 ], Addr[ 0x19a011]----->
          Version:V3.0.10P3N2
     Is committed:01
        Is active:01
         Is valid:01

<-----MeID[ 0x0001,1 ], Addr[ 0x19a031]----->
          Version:V3.0.10P2N6
     Is committed:00
        Is active:00
         Is valid:01
---------------------------------------------------------------------

GPON/OMCI settings

Setting ONU GPON Serial Number

setmac 1 2176 ZTEG
setmac 1 2177 AABBCCDD

Setting ONU GPON PLOAM password

This can be done easily via the web UI. To do it via the shell use:

setmac 1 2181 1234567890
setmac 1 2178 1234567890

Setting ONU GPON Equipment ID

setmac 1 32770 "5::F6005V3.0:"

Check Images CRC

upgradetest bakver

backup version crc is ok
success!

Persistent Telnet access

Needed tools:

ZTE ONU Telnet Enabler

Just run the enabled with --telnet flag to make Telnet persisten across Reboot (use --new flags and changed mac-address for newer firmware):

./zteOnu -i 192.168.1.1 -u admin -p admin --telnet

ZteONU 0.0.7, built at 09/10/2024
source: https://github.com/stich86/zteOnu
-----------------------------------
step [0] reset factory: ok
step [1] request factory mode: ok
step [2] send sq: ok
step [3] check login auth with user: ok
step [4] enter factory mode: ok
-----------------------------------
Success authenticated with user: admin and password: admin
Permanent Telnet succeed
User: root
Pass: Zte521
Wait reboot.. or powercycle it

The ONT will reboot, and you can log in later using root\Zte521 as the credentials.

Just for OpenFiber firmware

In case you want add new a admin user instead of using the embedded credentials, run these commands before rebooting the ONT:

sendcmd 1 DB set DevAuthInfo 5 Enable 1
sendcmd 1 DB set DevAuthInfo 5 User superadmin
sendcmd 1 DB set DevAuthInfo 5 Pass superadmin
sendcmd 1 DB set DevAuthInfo 5 Level 1
sendcmd 1 DB set DevAuthInfo 5 AppID 1
sendcmd 1 DB saveasy

Reboot the ONT and you can login to the WebUI using superadmin\superadmin as credentials with full unlocked menus.

Advanced settings

Backing up ONT partitions using hardware flasher

It’s possible to swap RAW dump between ONTs and enable access over telnet to modify some ONT parameters.

Needed tools:

• Windows, Linux or macOS with SNANDer
• CH341a programmer with 3.3V voltage
• Pogo-Pin Probe for WSON8 8x6mm chip

Connect all needed cable from the probe to the programmer, then attach the probe to the chip (use some rubbers to make it stable) and run this command to dump the NAND:

/SNANDer -r f6005v3_dump_X.bin

Do at least 3 dumps and compare their md5 to be sure that are good.

If you want to flash this dump to another ONT, just run these commands:

/SNANDer -e
/SNANDer -w f6005v3_dump_X.bin -v

## Changing region code

<div markdown="span" class="alert alert-blue" role="alert">
  <svg viewBox="0 0 24 24" class="svg-info-icon"><use xlink:href="#svg-info"></use></svg>
  <span> <b>Note</b> Be aware that changing the region code may break features such as PPPoE depending on your ISP, and remove Telnet access!</span>
</div>


ZTE has created various region codes that load default values based on the local ISP. This configuration can be changed using this command:

```sh
upgradetest sfactoryconf X

Where X is the number of supported regioncode into file /etc/init.d/regioncode, here is an example from TIM V3.0.10N06 firmware:

# cat /etc/init.d/regioncode
14:Thailand
97:ItalyTi
116:Tescali
154:Izzi
163:BrazilClaroHome
188:HollandKpnSfu
198:Manufacture
2074:ItalyFastwebSFU

Random notes

• ZTE F6005v3 read the software version exposed through the gpon_omci deamon from each kernel partition header, so the only way to spoof this parameter is to change the version in the header and recalculate CRC, otherwise the bootloader will refuse to load the image.
• If your ONT is updated by the OLT (e.g., an F6005v3 OpenFiber ONT connected to a TIM OLT), the U-Boot partition will also be updated. After this update, it will no longer be possible to switch to the other partition because the signatures will not match.

Miscellaneous Links

• ZTE ONU Telnet Enabler

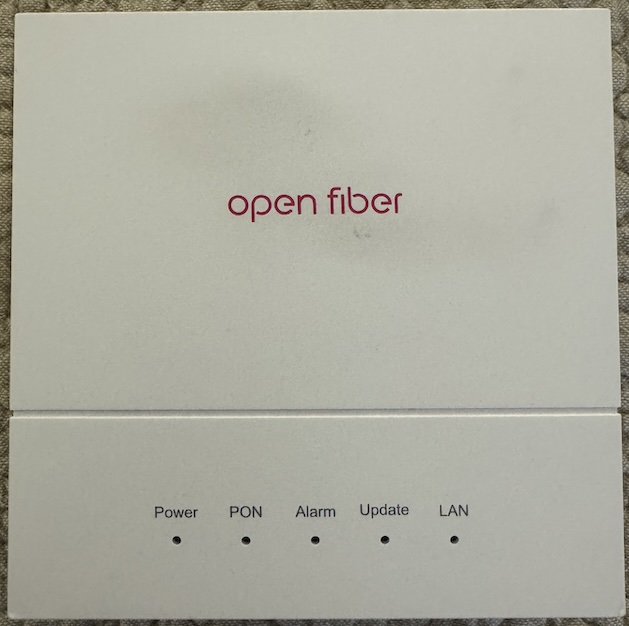

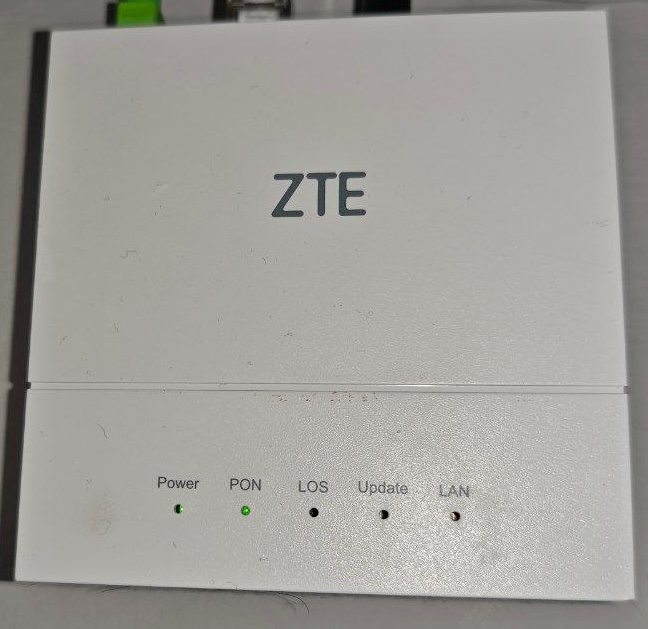

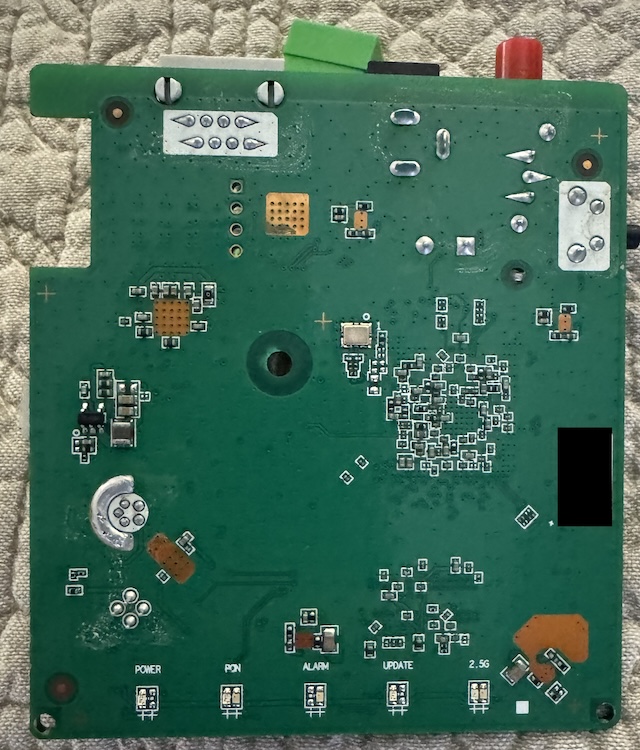

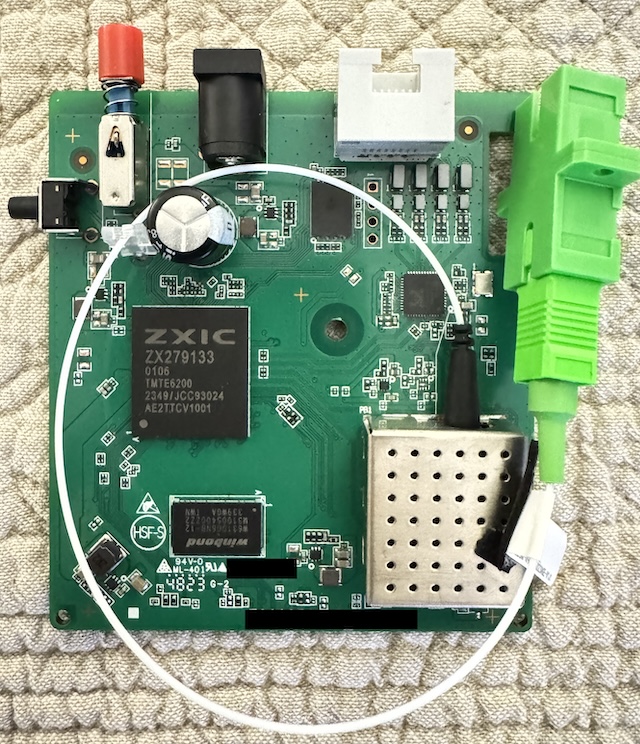

Teardown and other photos

HW V3.0
